Voltaic Nanuk Waterproof Case
$159.95

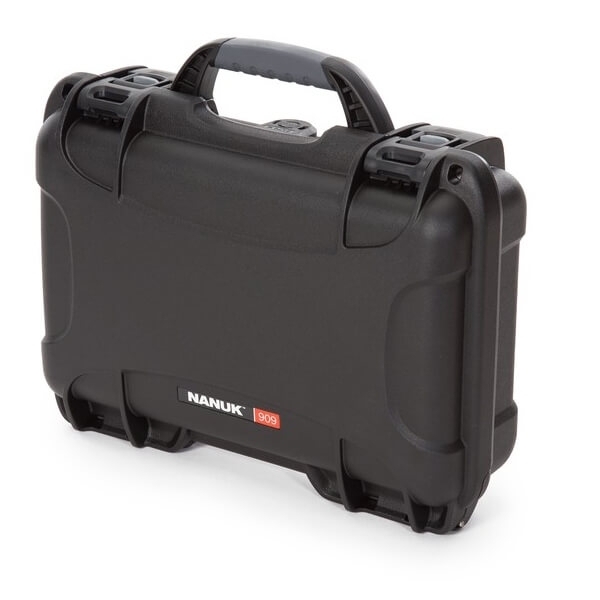

The Nanuk 909 Waterproof Case is modified by our Voltaic team to easily connect with our solar panels and batteries, without compromising the waterproof seal.
- Solid foam core with removable cubed insert
- Waterproof IP67 rated
- Compatible with the Voltaic V88 Battery Pack
- Recommended for: 17 Watt Solar Charging Kit
(VNANUK909)
ITEM: NANUK-909
Exterior Dimensions
- 32.1 x 22.9 x 11.1 cm
Interior Dimensions
- 29.1 x 17.8 x 9.3 cm
Weight
- 0.98 kg
| SKU | VNANUK909 |
| Brand | Voltaic |
Connecting to a solar panel
- Remove any adapter from the solar panel cable or extension cable if there is one

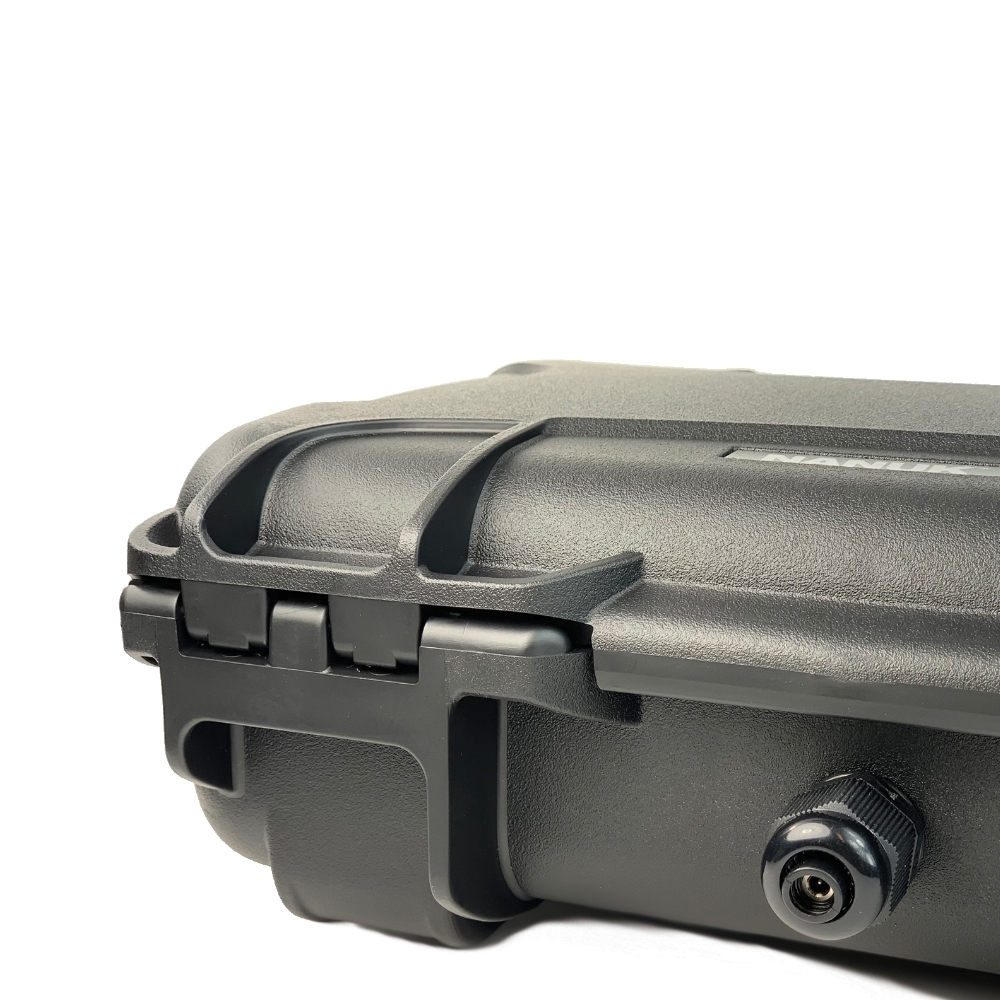

- Plug the solar cable into the female plug on the back of the Nanuk case, pushing it all the way in so that both ridges on the solar cable are covered
Connecting to the battery on the inside of the case

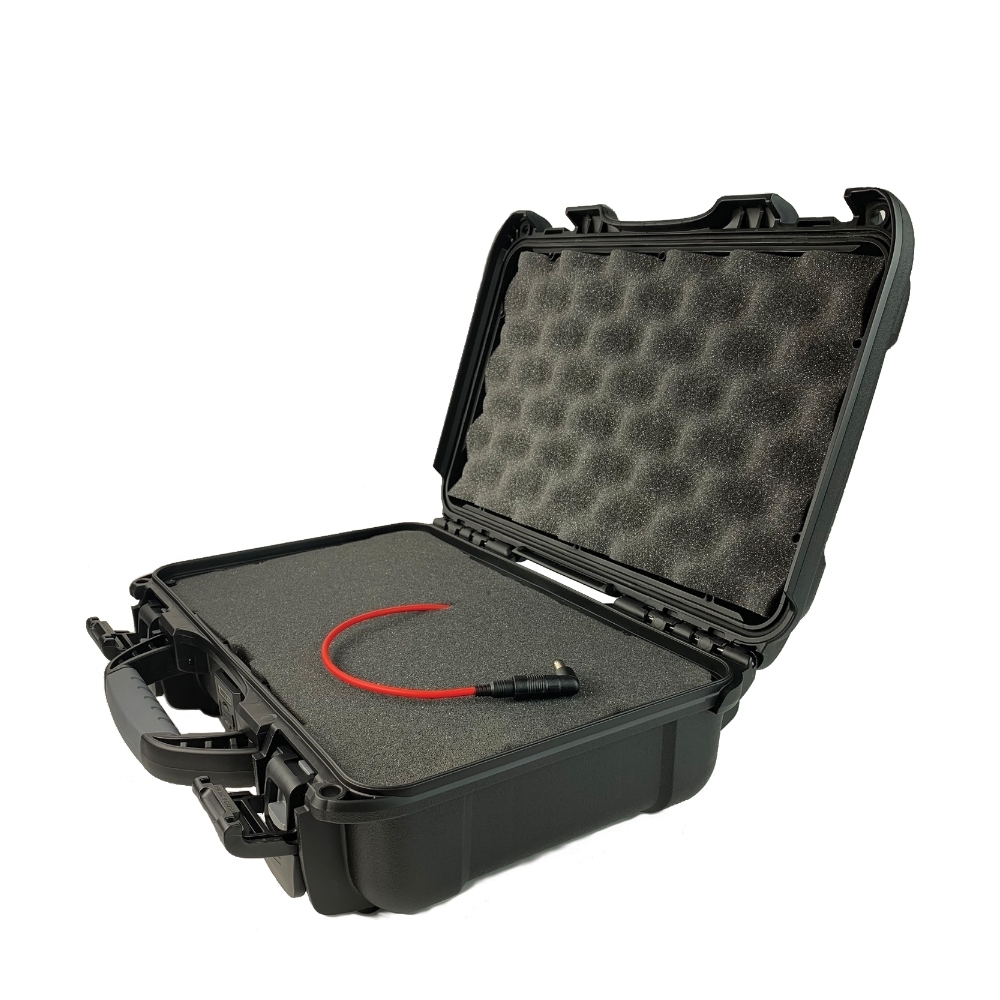

- Connect the internal cable into the Voltaic battery (V88 Laptop Battery recommended)
Customizing Foam Insert
- Lay battery on top of full foam insert to plan where it should go
- Use a sharp knife / box-cutter / scissors to remove foam around the edges of the battery so it will fit securely
- Once the edges are cut, use horizontal cuts inside the foam to remove the entire layer foam from the insert
- If battery is positioned on top of the foam (recommended) cut an additional cavity underneath the battery to store your cell phone
Recommended For:
- 17W Solar Charging Kit with V88 Laptop Battery
