Voltaic 9Watt Panel Only - V9W

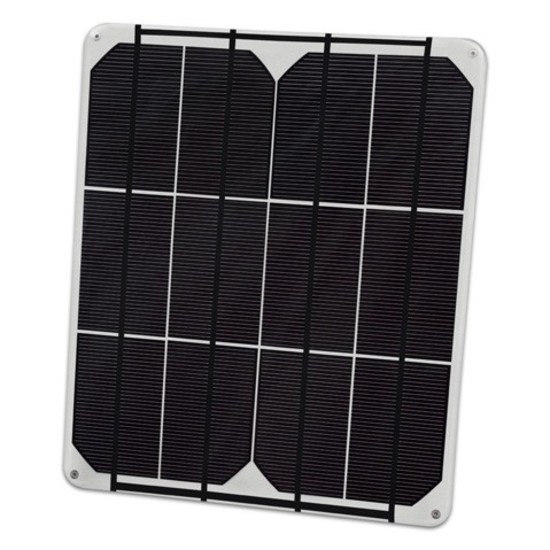

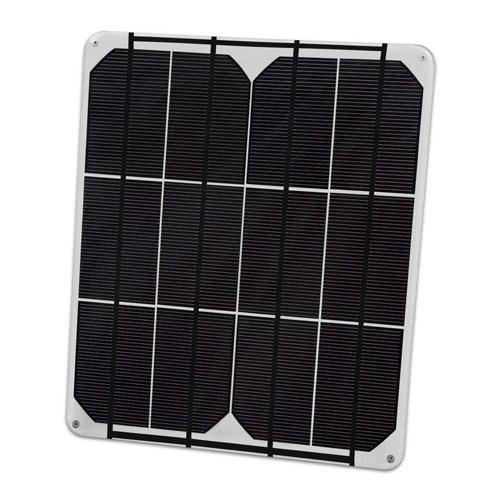

Voltaic 9 Watt Solar Panel

• The Voltaic 9 Watt, 6 Volt panel is designed for applications with high drain USB devices.
• Pairs with the Voltaic V44 battery.
• The panel is waterproof, scratch- and UV resistant.
• It uses high-efficiency monocrystalline cells.

Features

• Waterproof
• UV resistant
• Compact and lightweight

Size and Weight

• 220 x 255 x 5mm (8.7 x 10.1 x 0.2 in)
• 360g (12.75oz)
• Monocrystalline cells - 19% efficient
• Open Circuit Voltage: 7.0V
• Peak Voltage: 6.0V
• Peak Current: 1500mAPeak
• Power: 9.0 Watts

Construction

• Urethane coating
• 3mm Aluminum/Plastic composite substrate

Mounting and Cables

• Four screws on back corners of panel allow multiple mounting options
• Output cable is 8.5 inches, 22cm long and has 3.5x1.1mm plug

*Output Description

• Panel output is computed based on cell manufacturer's data assuming 0% reduction of cell efficiency after packaging of cell strings.
• Electrical output tolerance +/- 10%.
• Under irradiance of 100 mW/cm2, absolute air mass of 1.5, at 25 °C, as per cell manufacturer's specifications.
• For maximum power output, orient the panels towards the sun.
• When not angled towards the sun, output will be reduced.
