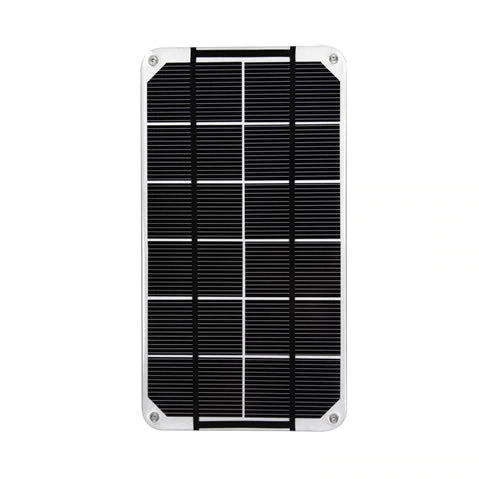

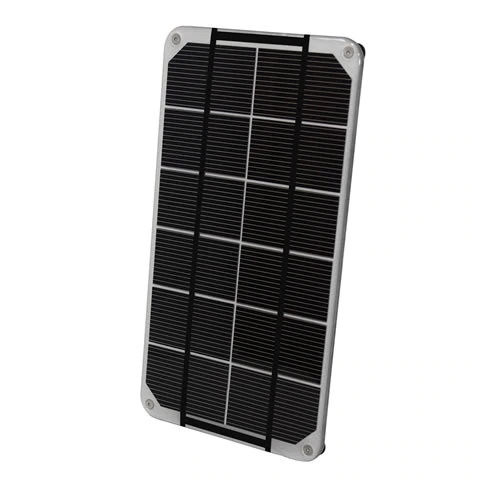

Voltaic 3.5 Watt Solar Panel for Small Solar Projects - V3.5W

The 3.5 Watt 6 Volt solar panel is lightweight, waterproof, and designed for long term outdoor use in any environment.

Features

• Waterproof (IP67)
• UV resistant (10+ year life)
• Durable and lightweight
• High efficiency monocrystalline cells: 19%
• Embedded screws for easy mounting

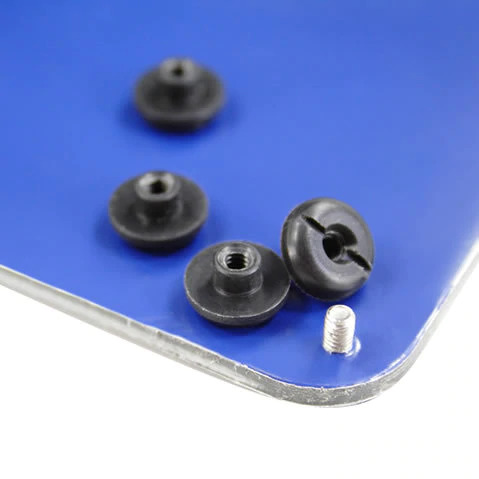

• ABS plastic post nuts included (4x)

Output

• Open Circuit Voltage: 7.7V
• Peak Voltage: 6.5V
• Peak Current: 550mA
• Peak Power: 3.5W
• Power Tolerance: +/-10%
• For maximum power output, orient the panel towards the sun

Construction

• Urethane coating
• 3mm aluminum-plastic composite substrate

Mounting

• Four embedded screws: 4-40 thread, 0.18" long [0.46cm]

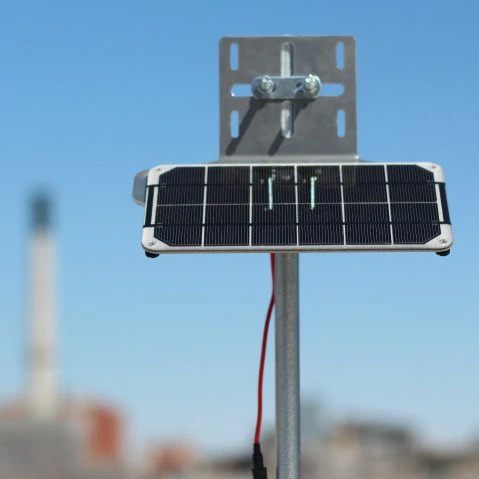

• Attach to a vertical pole using Small Panel Bracket
• Attach to a metal surface using magnet mounts

Output Cable

• Cable Length: 10.2" (26cm)
• Cable Color: Red PU Coated
• Plug: Waterproof Male 3.5x1.1mm
• Extend the cable length using 1 foot, 4 foot, and 10 foot extension cables
• Solder directly to a PCB using extension with exposed leads

Size and Weight

• 8.3 x 4.4 x 0.2 (21 x 11.3 x 0.5 cm)
• 5.5 oz. (156g)

Warranty

• 2 year warranty on solar panels
